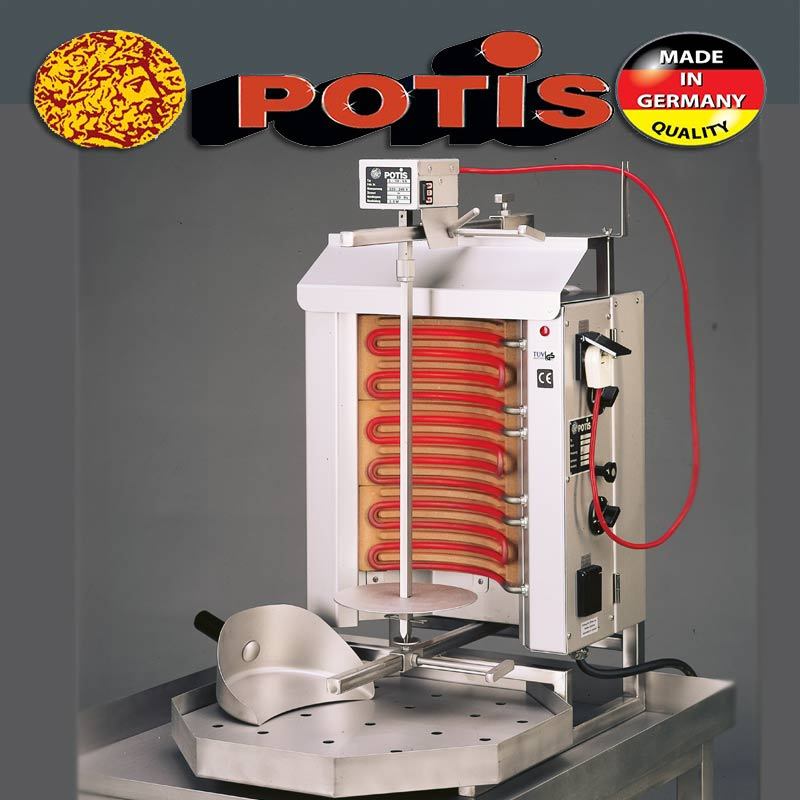

Typ POTIS E1 Döner and Gyros grill
Complete, with a grease pan, spit, spit plate and motor
Stainless steel (rust-proof)
Technical date

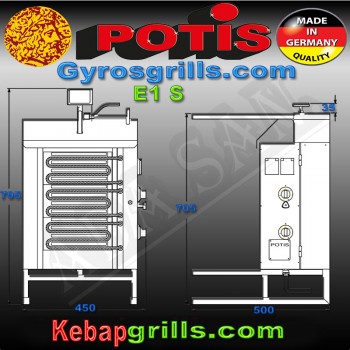

• Charging space w/o grease pan (W x D): 450 x 500 mm
• Charging space w/ octangular grease pan (W x D): 500 x 650 mm
• Operating height w/ motor: 795 mm
• Appliance connection:
• model E1 3,9 kW/ 230 V / 1/N/PE/
Typ POTIS E1 Döner und Gyrosgrillgerät
komplett, mit Fettwanne, Spieß, Spießteller und Motor
Elektrogerät Edelstahlausführung (rostfrei)
Technische Daten
• Stellfläche ohne Fettwanne (B x T): 450 x 500 mm
• Stellfläche mit 8 eckiger Fettwanne (B x T): 500 x 650 mm
• Arbeitshöhe mit Motor: 790mm
• Anschlussleistung:
• Modell E1 3,9 kW/ 230 V / 1/N/PE/
Typ POTIS E1 Döner Gyros Ocagi
Teknik bilgiler
• Kurulu halde kapsadığı alan (Eni x derinliği): 450 x 500 mm
• 8 köşegenli yağ küveti ile kapsadığı alan: 500 x 650 mm
• Çalışma yüksekliği (motorlu): 795 mm
• Bağlantı (elektrifikasyon) gücü:
• Model E1 3,9 kW/ 230 V / 1/N/PE/
Typ POTIS E1 appareils à doner ou à gyros
Spécifications techniques
• Surface sans cuve la graisse (largeur x profondeur): 450 x 500 mm
• Surface avec cuve octogonale pour la graisse (largeur x profondeur): 500 x 650 mm
• Hauteur totale, moteur inclus: 795mm
• Connexions:
• Modell E 13,9 kW/ 230 V / 1/N/PE/
Typ POTIS E1 Parrilla giratoria de doner y gyros
Características tecnica
• Superficie útil (anch.x prof.): 450 x 500 mm
• Superficie útil con bandeja octagonal para la grasa (anch.x prof.): 500 x 650 mm
• Altura del aparato con motor: 795 mm
• Potencia de conexión del aparato:
• modelo E1 3,9 kW/ 230 V / 1/N/PE/
